Product overview

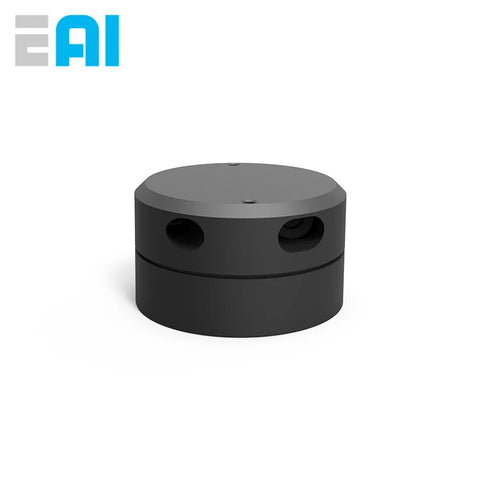

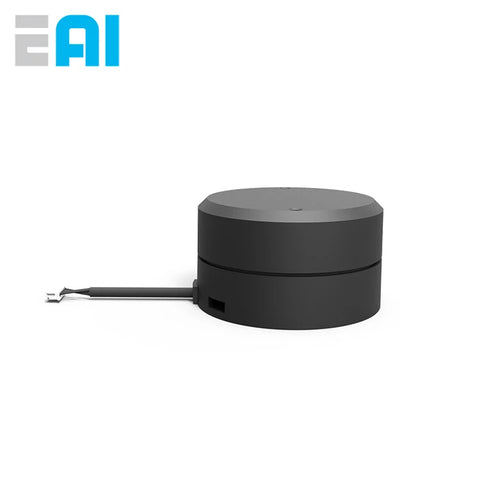

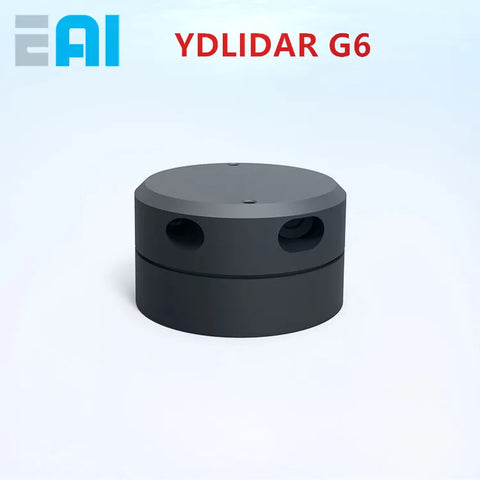

YDLIDAR G6 is a 360-degree two-dimensional range measuring system developed by EAI.This product is based on the triangulation ranging principle, coupled with relevant optical, electrical, algorithm design, to achieve high frequency high precision distance measurement, in the ranging at the same time, the mechanical structure 360 degree rotation, constantly obtain Angle information, so as to achieve 360 degree scanning ranging, output scanning environment point cloud data.

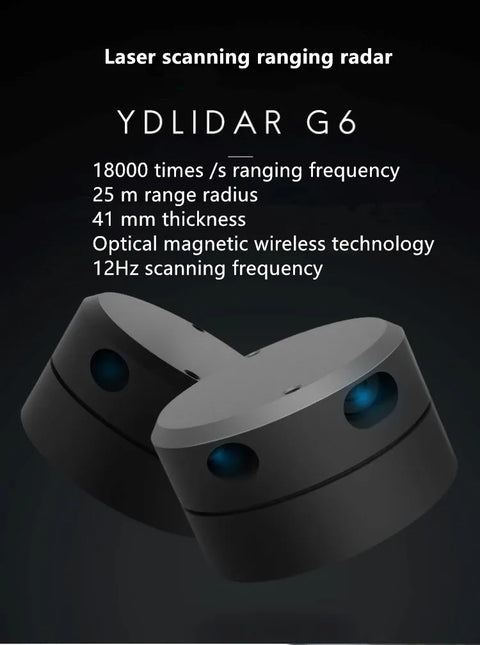

Product features

1.360 degree omni-directional scanning ranging

2. Small ranging error, good ranging stability and high accuracy

3. Ranging range is wide, not less than 25m

4. Strong resistance to ambient light interference

5. Industrial grade brushless motor drive, stable performance

6. The laser power meets the Class I laser safety standard

7.360-degree all-directional scanning, 5-12hz adaptive scanning frequency (support customization)

8. Optical and magnetic fusion technology realizes wireless communication and wireless power supply

9. High-speed ranging, ranging frequency up to 18000hz

Application scenarios

Robot navigation and obstacle avoidance

Robot ROS teaching and research

Regional security

Environment scanning and 3D reconstruction

Navigation and obstacle avoidance of home service robot/sweeping robot

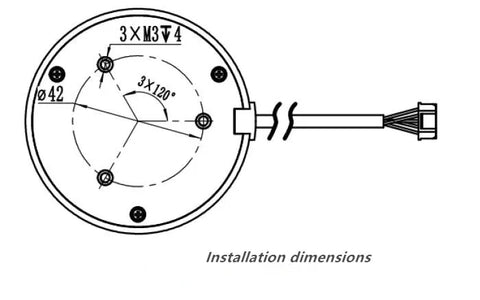

Installation and dimensions

Technical parameters

360°EAI lidar ranging sensor module YDLIDAR G6 projection interactive positioning navigation obstacle avoidance 25 meters 18K
