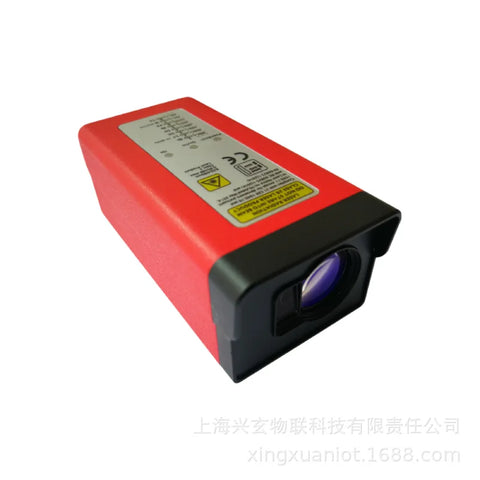

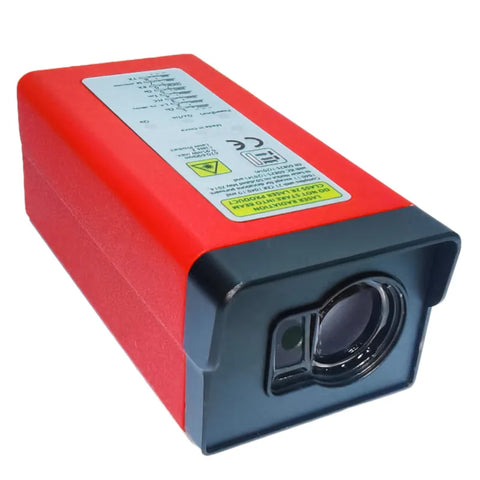

300 meter long distance high-precision industrial Laser rangefinder sensor high-precision infrared rangefinder module sensor

Model Description:

Model 1. RS422 interface+RS485 interface+PNP/NPN interface with a range of 300 meters

Model 2. RS232 digital quantity+4-20mA analog quantity+PNP/NPN switching quantity 300 meter range

Industrial grade laser ranging sensor DD1-E300-S series features:

1. Industrial grade laser ranging sensor DD1-E300-S, with a 300 meter range, domestically produced high-quality products that benchmark foreign high-end products, with a 300 meter ranging range and good stability

2. With a central wavelength of 690nm, the product is not prone to heat generation, and has no temperature drift during long-term operation. Visible light points are visible to the naked eye, allowing for precise target positioning

3. The measurement frequency is 30Hz, with fast response and the ability to measure moving targets

4. Supports measuring 10m/s (36km/h) moving objects with fast measurement speed

5. High precision, with an accuracy of up to 1mm and a resolution of 0.1mm, suitable for high-precision measurement in various complex scenarios

6. Phase measurement (with pulse type options), which can measure high-temperature targets such as molten steel below 1400 ℃, is truly suitable for industrial sites

7. Standard M12 aviation plug, strong anti-interference ability, complete industrial interfaces, and easy to use

8. Multiple ranging specifications, supporting specifications such as 30 meters/50 meters/100 meters/200 meters/300 meters/400 meters, etc. The current product is 0.05-300 meters

9. Rich interfaces, supporting RS422/RS485/RS232/PROFIBUS bus/SSI/PROFINET bus/switch quantity/4-20mA analog quantity and other interfaces, convenient for connecting various PLC, upper computer and other control equipment. The current product RS485/RS422/RS232 communication

10. Metal reinforced shell, sturdy and durable, corrosion-resistant, suitable for complex and harsh industrial environments

11. Widely applicable for online tunnel inspection, stacker positioning, crane positioning, industrial kiln car positioning, ferry damping tire positioning, kiln car ranging, steel ladle car positioning in steel mills, electrolytic aluminum overhead crane positioning, electrolytic copper aerial car positioning, industrial equipment weld seam tracking, industrial cable length measurement, steel pipe length measurement, mining steel wire rope length measurement, industrial bar fixed length shear detection, oil well elevator distance detection, mining car crane positioning measurement, Coking plant crane positioning and ranging, power plants, steel mills, railways, coal mines, metallurgy, printing, papermaking, food, medical, biopharmaceuticals, automotive manufacturing, petrochemical, industrial textiles, equipment manufacturing, CNC machine tools, power electronics, shipbuilding, packaging materials, water treatment engineering, environmental protection engineering, and many other industries
